Rahmen
Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
-
Gabel
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
-
Motor
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU)
-
Akku
Bosch Dual Battery system, 2x500 Wh
-
Schaltwerk
Rohloff E14, e-shift 14 spd
-
Bremse vorne
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
-
Bremse hinten
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
-
Bremshebel
Magura MT5 e-stop, hydraulic, with brake sensor
-
Kurbel
Tern GSD custom, Gates CDX CNC machined beltring
-
Tretlager
Motor integrated
-
Kopfhörer
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
-
Pedale
Urban with non-slip surface, sealed bearings
-
Patrone
Gates CDX, precision CNC machined cog
-
Kette
Gates Carbon Drive CDX belt
-
Lenker
Tern Sweep, 6061-AL, Tern Andros adapted
-
Vorbau
Tern Andros, adjustable, forged construction, patented technology
-
Sattelstütze
Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
-
Sattel
Tern GSD by Velo, with rear handle
-
Fahrradgriffe
Ergon
-
Vorderradnabe
Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
-
Hinterradnabe
Rohloff E14, 526% range, Boost
-
Felgen
Tern Atlas, ultra wide 36 mm, dual reinforced joint
-
Reifen
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
-
Rohr-Steuerelement
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
-
Display
Bosch Intuvia, Rohloff integrated shifting w/ auto downshift
-
Ladegerät
220V, 4A (EU)
-
BELL
Pitch Plus, brass
-
Kettenschutz
Tern Custom, full chain cover
-
Ständer
Atlas Lockstand, w/ remote unlock, patented technology
-

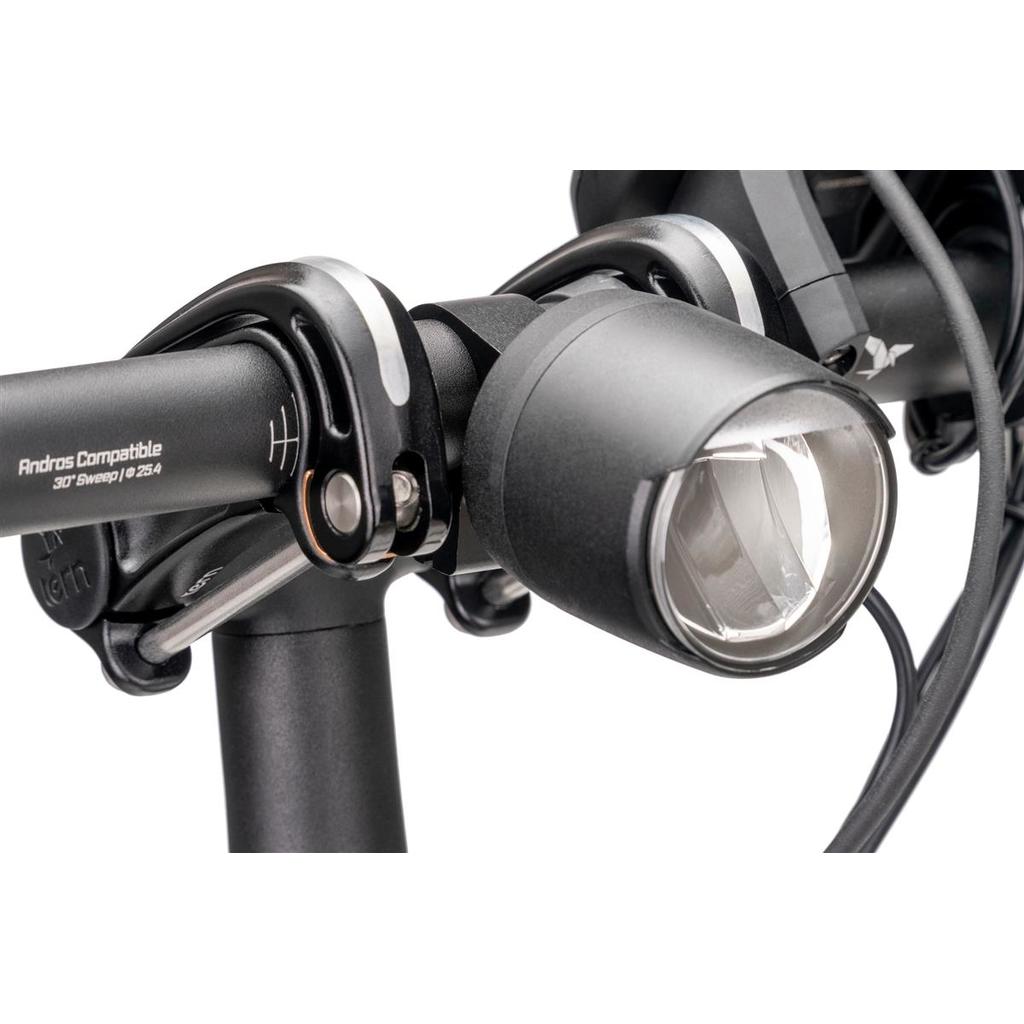

Frontleuchte
Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
-
Rücklicht
RearStop Brake Light, Always on brake light
-
Schutzbleche
Integrated Wheel Guard, AL6061, w/ Side Skirt
-
Gepäckträger
Frame integrated, heavy duty design
